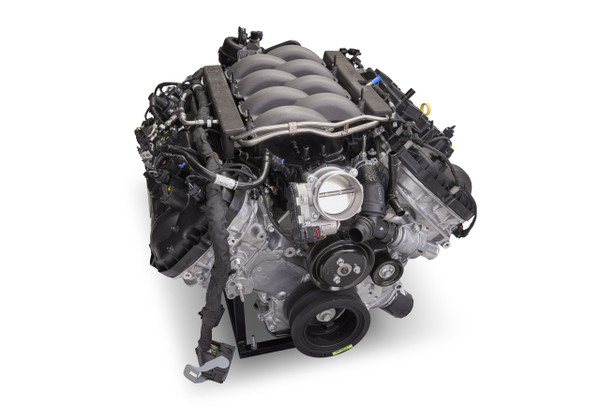

GEN 3 5.0L COYOTE 460 HP MUSTANG CRATE ENGINE

GEN 3 5.0L COYOTE 460 HP MUSTANG CRATE ENGINE

Call for Pricing & Freight Quote

(No reviews yet) Write a Review
Brand:

SKU:
M-6007-M50C
UPC:
756122002087

The Ford Performance all-aluminum 2018-2020 5.0L Coyote crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Direct and Port Fuel Injection, Twin Independent Variable Camshaft Timing (Ti-VCT), high-flow cylinder heads, and heightened compression ratio to deliver 460 horsepower @ 7,000 rpm and 420 ft.-lb.+ of torque @ 4,600 rpm (with premium fuel). The lightweight  plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, optimized oil drainback and windage control to improve high-rpm performance.

  • 460 Horsepower @ 7,000 rpm
  • 420 ft.-lb.+ of Torque @ 4,600 rpm
  • 12.0:1 Compression ratio
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on BOSS302 Mustang
  • Forged steel crankshaft
  • Aluminum block which features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 10 qt capacity oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • 80 mm single bore "drive by wire", electronic throttle body with variable runner control
  • High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing
  • Includes manual transmission engine harness and dual mass flywheel, for engine equipped with automatic transmission engine harness and flex plate, see M-6007-M50CAUTO
  • Engine mount bosses and bell housing mount pattern common to 4.6L modular engines
  • Mustang GT 409 stainless steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • Vehicle harness and PCM not included
  • Use Ford Performance M-6017-M50B Control Pack which includes wiring, PCM and installation kit, designed for project car installation
  • Does not include alternator, for alternator kit see M-8600-M50BALT or M-8600-M50ALTA
  • 5.0L Coyote air conditioning kit available, see M-8600-M50AC
  • 5.0L Mustang motor mount kit available, see M-6038-M50
  • 5.0L Mustang engine cover kit available, see M-9680-M50B
  • Photo and specs may vary
  • Engine weight: 445 lbs
